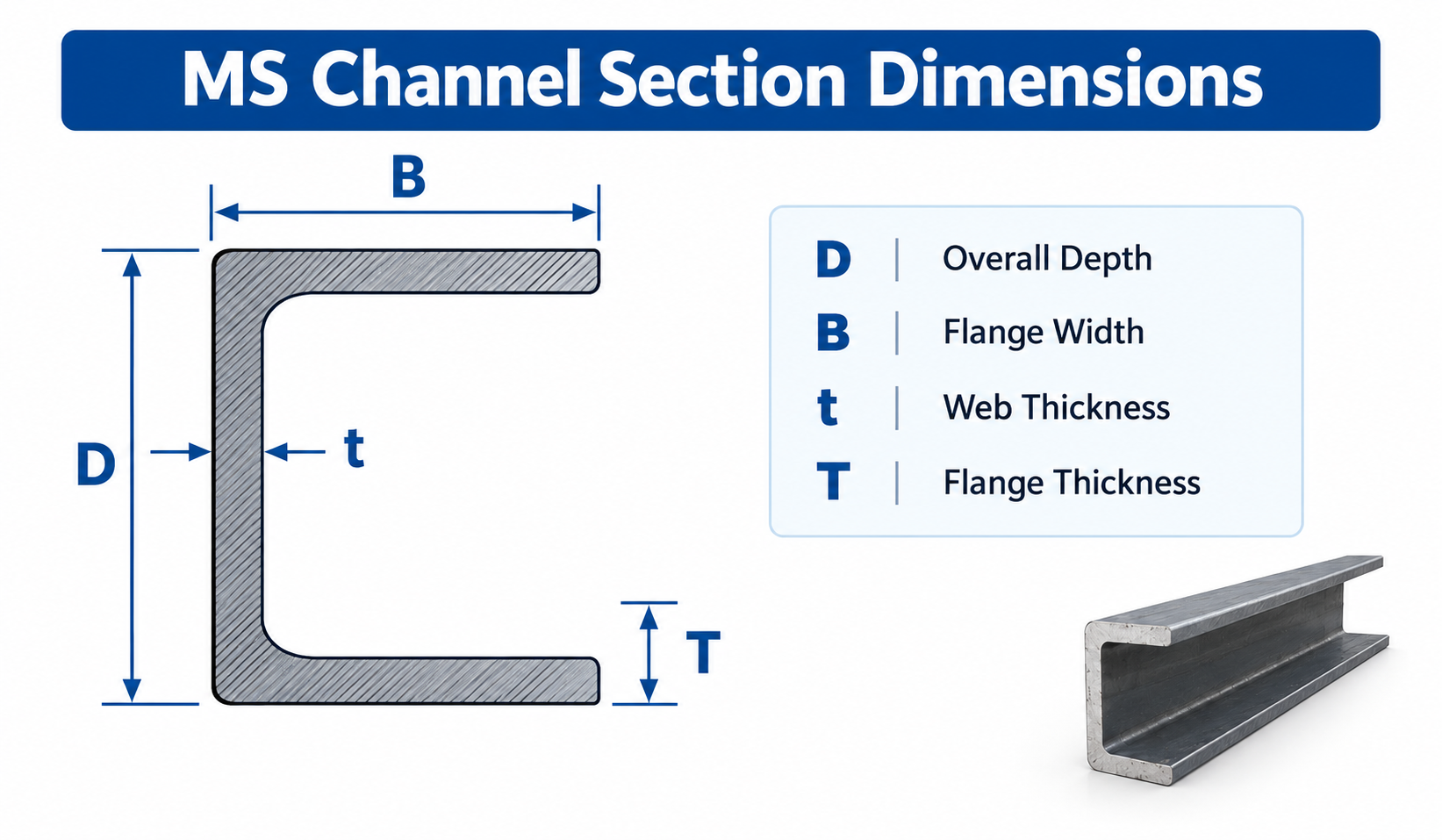

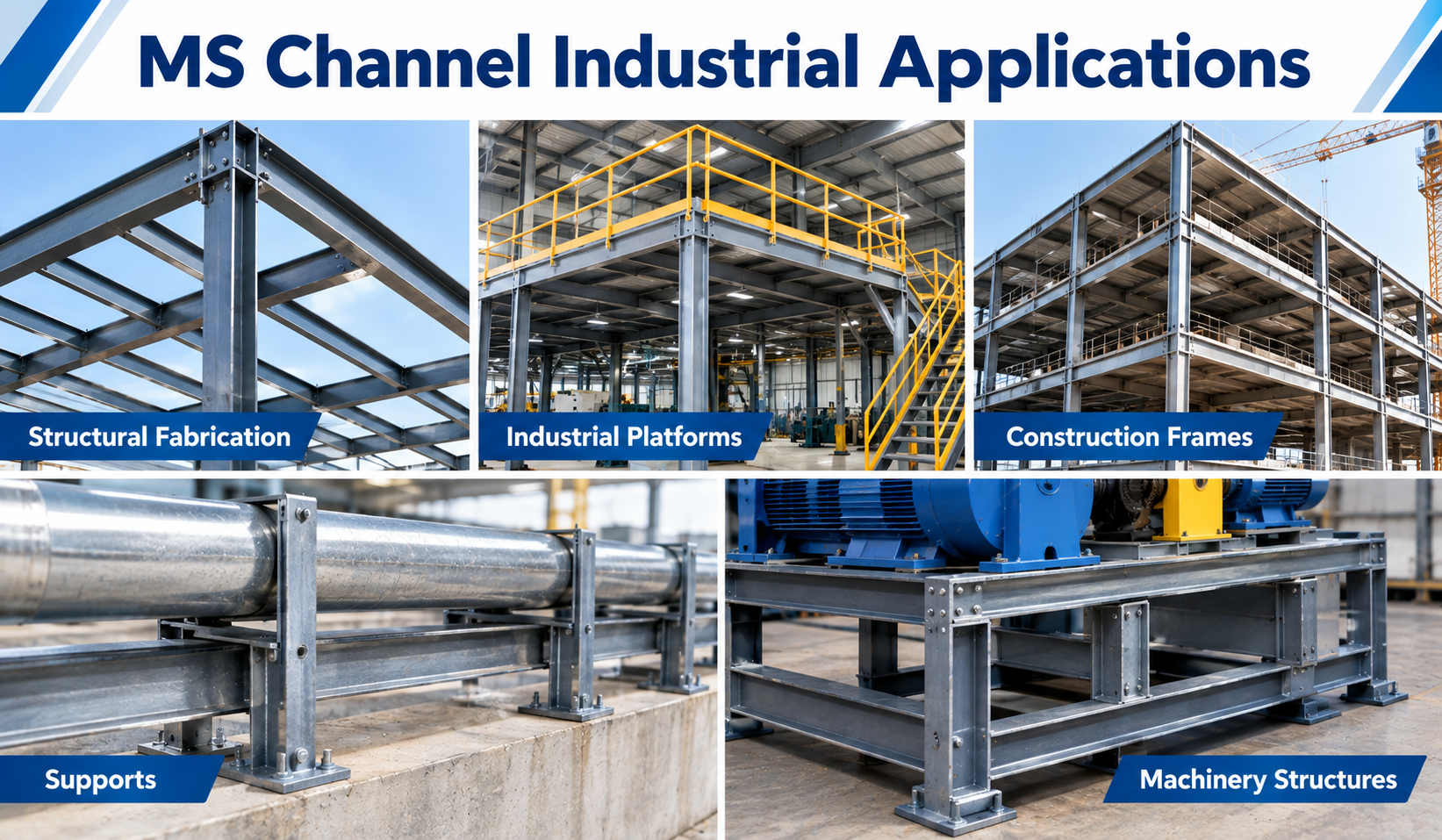

MS Channels or commonly known as C- channel, because of their C like shape is represented by its Web height & Flange width of the channel. our user-friendly ms channel weight chart and calculator offer accurate information that makes informed decisions easier for your endeavor. MS Channel primarily carries horizontal gravitational forces and is used for bus body, EOT cranes and many more engineering industry needs. Sachiya Steel International suppliers as top supplier for building material, stock all sizes/ weights of channel from companies like SAIL, RINL and other prestigious manufacturers of mild steel channel.
Sachiya Steel International is your go-to resource for all things steel-related. From planning a construction project to simply knowing the weight of MS channels, our user-friendly MS channel weight chart and calculator offer accurate information that makes informed decisions easier for your endeavor. Trust Sachiya Steel International as reliable resources simplify steel calculations for successful endeavors!

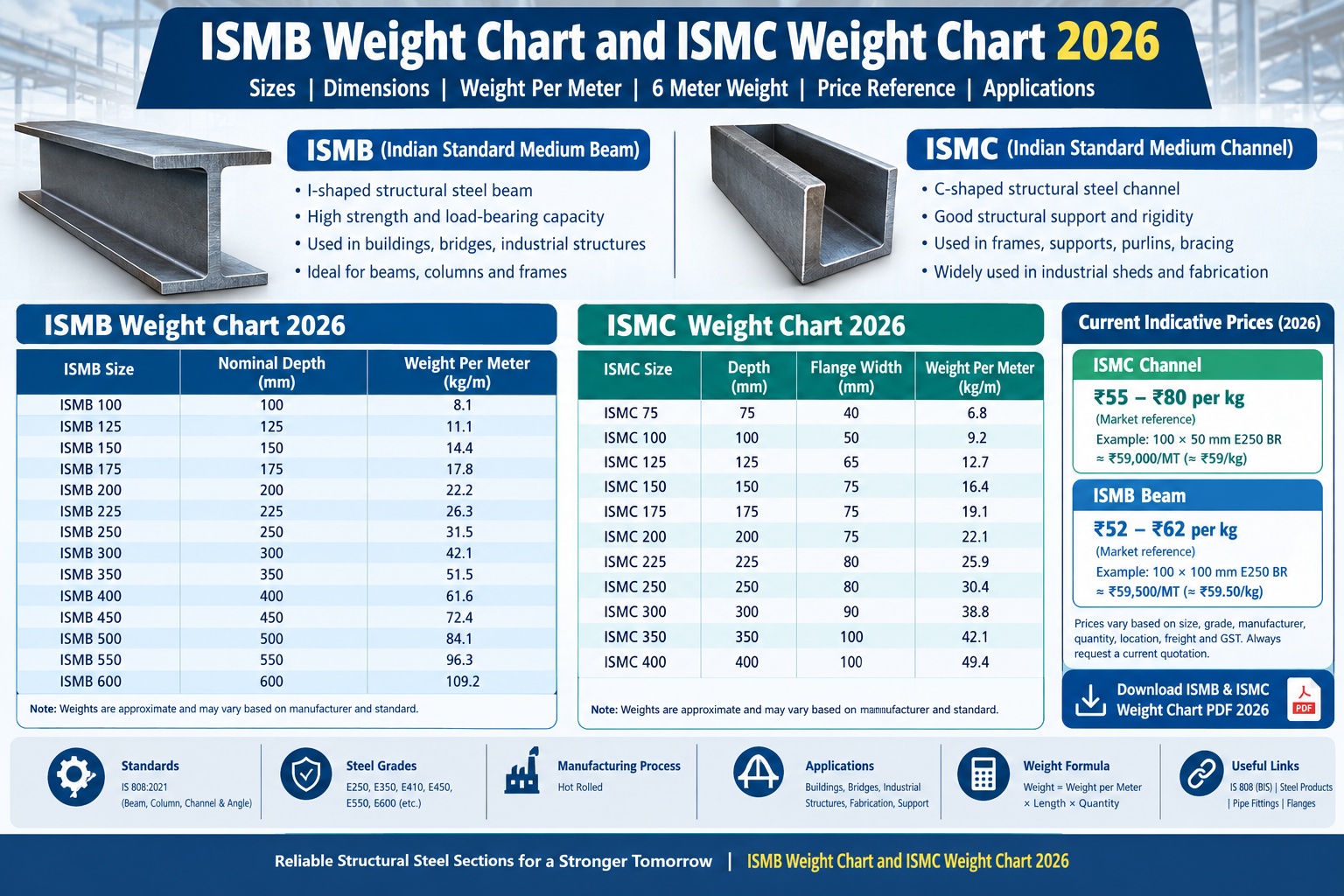

ms channel weight chart |
||
| Size | Weight in Kgs. Per Feet | Weight in Kgs. per Mtr. |
|---|---|---|
| ISMC 75 x 40 x 4.8 | 2.176 | 7.14 |
| ISMC 100 x 50 x 5 | 2.914 | 9.56 |
| ISMC 125 x 65 x 5.3 | 3.993 | 13.10 |
| ISMC 150 x 75 x 5.7 | 5.121 | 16.80 |
| ISMC 175 x 75 x 6 | 5.975 | 19.60 |
| ISMC 200 x 75 x 6.2 | 6.798 | 22.30 |
| ISMC 250 x 82 x 9 | 10.426 | 34.2 |
| ISMC 300 x 90 x 7.8 | 11.067 | 36.3 |
| ISMC 400 x 100 x 8.8 | 15.274 | 50.1 |
| MILD STEEL CHANNELS | |||||||
|---|---|---|---|---|---|---|---|
| DIMENSION & PROPERTIES AS PER ISI SPECFICATION IS:2062-2006 | |||||||
| Designation | Depth of Section | Width of Flange | Thickness of Web | Weight/Mtr | Sectional Area | Moduli of Section | |
| h | b | t | w | a | Zxx | Zyy | |
| (mm) | (mm) | (mm) | (kg) | (cm2) | (cm2) | (cm2) | |
| ISMC 75 weight | 75 | 40 | 4.8 | 7.1 | 9.1 | 20.3 | 4.7 |
| ISMC 100 weight | 100 | 50 | 5 | 9.6 | 12.2 | 37.3 | 7.5 |
| ISMC 125 weight | 125 | 65 | 5.3 | 13.1 | 16.7 | 68 | 13.4 |
| ISMC 150 weight | 150 | 75 | 5.7 | 16.8 | 21.3 | 105 | 19.4 |
| ISMC 175 weight | 175 | 75 | 6 | 19.6 | 24.4 | 139.8 | 22.8 |
| ISMC 200 weight | 200 | 75 | 6.2 | 22.3 | 28.5 | 181 | 26.4 |
| ISMC 250 weight | 250 | 82 | 7.2 | 34.2 | 39 | 307 | 38.4 |
| ISMC 300 weight | 300 | 90 | 7.8 | 36.3 | 46.3 | 428 | 47.1 |
| ISMC 400 weight | 400 | 100 | 8.8 | 50.1 | 63.8 | 760 | 67 |
Channel Weight Per Kg
| Sr. No. | Side(mm) x Side(mm) x Thickness(mm) | Section Weight (Kg/m) |
| 1 | MC *40 X 32 X 5 | 4.82 |
| 2 | MC 75 X 40 X 4.8 | 7.14 |
| 3 | MC 100 X 50 X 5 | 9.56 |
| 4 | MC 125 X 65 X 5.3 | 13.1 |
| 5 | MC 150 X 75 X 5.7 | 16.8 |
GRADES:
Sectional Properties as per:-
| For Channels :- | IS :808 – 1989 / IS :3954 – 1981 |
|---|---|
| Tolerance as per:- | |
| For Channels :- | IS :1852 – 1985 / IS :3954 – 1981 |
| Grades as per:- | |
| For Channels :- | IS :2062 :E250 A – 2006 |
Structural Sizes & Section weight of Beams/ Joists, Channels and Angles
| Section | Dimensions | Sectional Weight | Length |
| mm | kg/m | m | |
| Channels | Bhilai Steel Plant | ||
| 75 x 40 x 4.8 | 7.14 | 10 to 12 | |
| 100 x 50 x 5 | 9.56 | ||
|
Durgapur Steel Plant
|
|||
| 125 x 65 x 5.3 | 13.1 | 10 to 11.5 | |
| 125 x 66 x 6 | 13.7 | for all dimensions | |
| 150 x 75 x 5.7 | 16.8 | ||
| 150 x 76 x 6.5 | 17.7 | ||
| 175 x 75 x 6 | 19.6 | ||
| 200 x 75 x 6.2 | 22.3 | ||
| 200 x 76 x 7.5 | 24.3 | ||
| Bhilai Steel Plant | |||
| 250 x 82 x 9 | 34.2 | 10 to 12 | |
| 300 x 90 x 7.8 | 36.3 | for all dimensions | |
| 400 x 100 x 8.8 | 50.1 | ||
VIZAG (RINL: – RASHTRIYA ISPAT NIGAM LIMITED )
Channel Weight Per Kg
| Sr. No. | Side(mm) x Side(mm) x Thickness(mm) | Section Weight (Kg/m) |
| 1 | MC *40 X 32 X 5 | 4.82 |
| 2 | MC 75 X 40 X 4.8 | 7.14 |
| 3 | MC 100 X 50 X 5 | 9.56 |
| 4 | MC 125 X 65 X 5.3 | 13.1 |
| 5 | MC 150 X 75 X 5.7 | 16.8 |
Precision in calculating the weight of steel materials like MS angles or plates is key for efficient construction projects, which is why our steel weight calculator, including its plate weight calculator, should be your go-to resource. It simplifies this complex process by offering precise results for angle weight and steel plate weight calculations – perfect whether dealing with MS angles or various steel profiles! Rely on us to simplify all your weight of steel calculations for reliable construction processes!
As you attempt to gauge the weight of MS angles for your projects, our comprehensive MS angle weight chart and angle weight calculator are invaluable resources. The former provides exact details on their weight while the latter allows you to quickly and precisely calculate custom angles’ weight quickly and precisely. Whether planning construction or making material choices wisely, our MS weight calculator and angle weight chart are your trusted resources for efficiency and accuracy.
Precision is key when it comes to calculating the weight of steel materials. Our metal weight calculator provides accurate results when working with dimensions like 65 x 65 x 5, 60 x 60 x, 50 x 50 x 5, 70 x 70 x, 80 x 80 x, 75 x 75 x 5 or 90 x 90 x using its density of 7850 kg/m3, as it works across angles and plates – eliminating estimation errors and wasted materials while providing you with data necessary for informed decisions about steel weight in construction projects.
