SS Pipe Weight Chart – Comprehensive Guide for Accurate Calculations
When working with stainless steel pipes in industries like construction, manufacturing, or petrochemicals, having precise weight measurements is critical. This guide provides the most comprehensive and accurate SS pipe weight chart, detailed information on schedules, technical attributes, and user-friendly tools for calculation.
At Sachiya Steel International, we recognize the need for reliability. Our complete guide includes an interactive weight calculator, detailed explanations of schedules, and information on grades like SS 304 and SS 316, ensuring you have everything you need in one place.
What is an SS Pipe Weight Chart?
An SS pipe weight chart is a tabulated reference of the weights of stainless steel pipes, categorized by:
- Outer Diameter (OD).
- Wall Thickness or Schedule (SCH).
- Material Grade (e.g., SS 304, SS 316).
- Length or Unit (per foot or meter).
It is indispensable for professionals in industries like water treatment, chemical processing, and construction, where precision in calculations translates to optimized costs, better design, and stronger infrastructure.
Why Does Accuracy Matter?
- Efficient Procurement – Prevent over-ordering or under-ordering materials.
- Cost Optimization – Exact weights enable you to plan transportation costs and inventory management.
- Project Precision – Knowing the exact pipe specifications ensures compliance with technical requirements.
This guide stands out by making weight calculations simple, accurate, and adapted to diverse needs.
How to Use Our Chart & Tools
Using our SS pipe weight chart is straightforward:
- Identify the Pipe Size (Nominal or OD) – The outside diameter determines the pipe’s classification.
- Choose the Schedule – Corresponds to wall thickness and determines the pressure-handling capacity.
- Reference Weight Data – Easily find the weight per unit length in kg/m or lbs/ft.
For any custom sizes, our interactive weight calculator allows instant, accurate computation. Jump to the calculator section below for quicker solutions.
Stainless Steel Pipe Weight Chart
Our chart extends beyond common sizes to include data for SS 304, SS 316, and heavier-duty pipes like SCH XXS. It also specifies critical attributes like burst pressure for better project insights.
| Pipe Size (inches) | Outer Diameter (OD mm) | SCH 5 (kg/m) | SCH 10 (kg/m) | SCH 40 (kg/m) | SCH 80 (kg/m) | SCH 160 (kg/m) | SCH XXS (kg/m) | Wall Thickness (mm) | Burst Pressure (PSI) |
|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 21.34 | 0.89 | 1.12 | 1.36 | 2.15 | 2.50 | – | 2.11 | 3,200 PSI |
| 3/4 | 26.67 | 1.14 | 1.38 | 1.82 | 2.94 | 3.75 | – | 2.77 | 2,900 PSI |
| 1 | 33.40 | 1.73 | 2.00 | 2.87 | 4.80 | 6.21 | 7.85 | 3.38 | 2,700 PSI |
| 1-1/4 | 42.17 | 2.33 | 2.62 | 3.88 | 6.56 | 8.39 | 10.75 | 3.56 | 2,500 PSI |
| 2 | 60.33 | 4.25 | 4.90 | 7.63 | 12.73 | 15.99 | 18.85 | 5.54 | 2,100 PSI |
| 4 | 114.30 | 8.23 | 9.80 | 16.43 | 33.04 | 41.20 | 50.25 | 6.02 | 1,650 PSI |
| 10 | 273.05 | 25.60 | 31.90 | 64.50 | 149.45 | 182.85 | 208.62 | 12.7 | 800 PSI |
Note: Weights are for SS 304 and SS 316 grades. Dimensions available up to 48 inches OD.
Pipe Grades and Their Applications
Different applications require pipes with specific properties. Here are details about the most commonly used SS grades:
1. Stainless Steel 304
- Applications: Food processing, chemical storage, and construction.
- Corrosion Resistance: Ideal for general-purpose use; resistant to most oxidizing acids.
- Strength:
- Yield Strength = 205 MPa
- Tensile Strength = 515 MPa
- Cost: Economical choice for most industries.
2. Stainless Steel 316
- Applications: Marine, oil, pharmaceuticals, and high salinity environments.
- Corrosion Resistance: Superior resistance due to molybdenum content.
- Strength:
- Yield Strength = 290 MPa
- Tensile Strength = 515 MPa
- Best Feature: Performance in extreme conditions.
3. Stainless Steel 304L and 316L
- Difference: Lower carbon content than 304 and 316.
- Applications:
- Welding-heavy projects.
- High-temperature usage.
Stainless Steel Pipe Weight Calculator
Use our interactive tool to get precise weight estimates in seconds. Input:
- Outer Diameter.
- Wall Thickness.
- Length (in meters or feet).

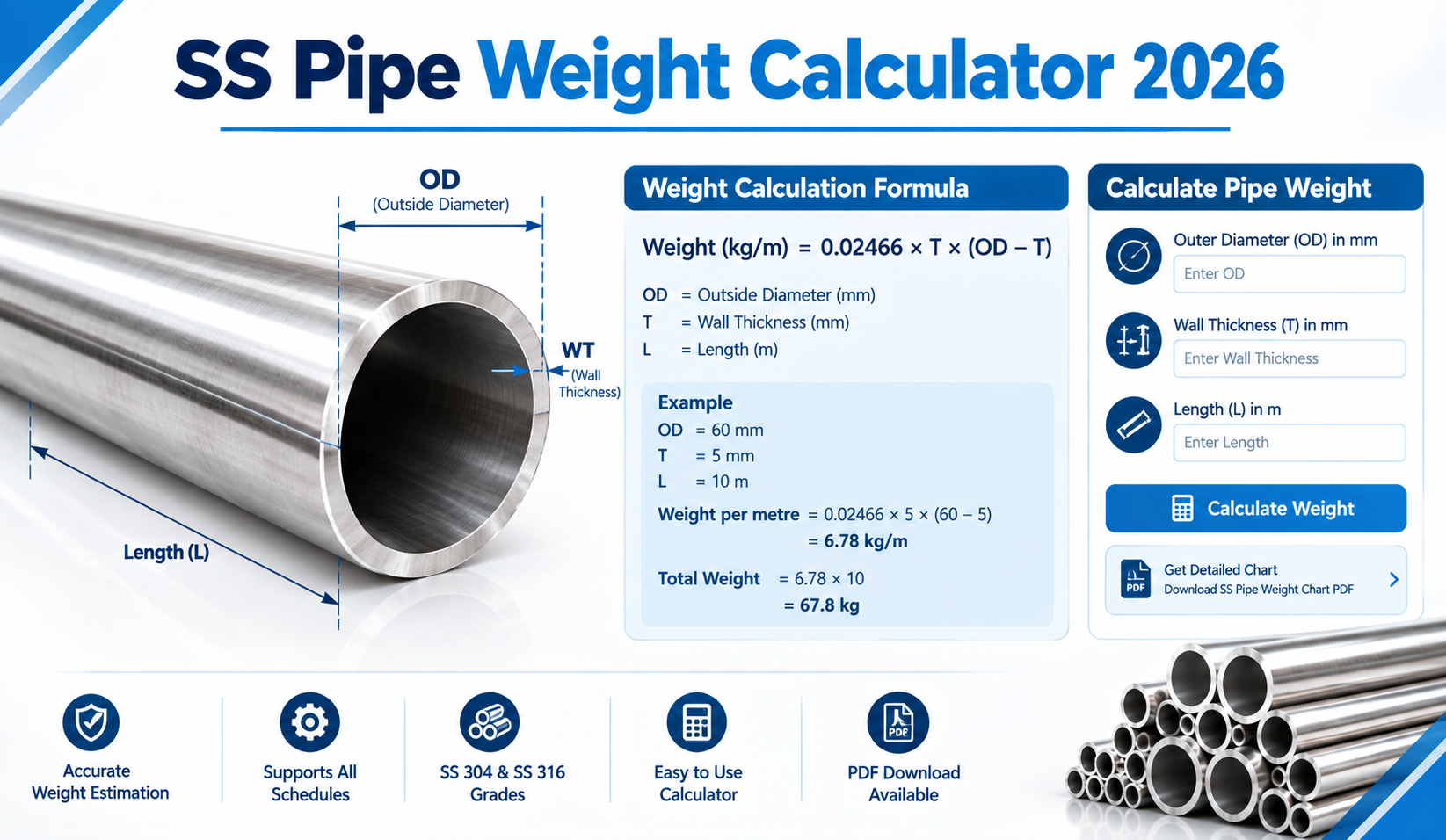

Manual Weight Calculation Formula
For those running offline calculations:
- Formula:
Weight (kg) = (OD – Wall Thickness) × Wall Thickness × Length × Density. - Example:
OD = 60 mm, Wall = 5 mm, Length = 1 m:- Weight = (60 – 5) × 5 × 1 × 0.02466 ≈ 6.76 kg/m.
Downloadable Resources
Save time with one-click downloadable resources:
Applications of Stainless Steel Pipes
1. Industrial and Manufacturing
- Suitable for transporting chemicals, gases, and fluids.
- Common in petrochemical and oil refinery plants.
2. Construction
- Widely used in structural frameworks for buildings and bridges.
3. Marine & High-Salinity Environments
- SS 316 pipes are corrosion-resistant, making them ideal for saltwater exposure.
4. Food & Beverage Processing
- SS pipes ensure hygiene and corrosion resistance, critical in food-grade applications.
FAQs
1. What is the heaviest schedule for SS pipes?
- SCH XXS (Double Extra Strong) offers maximum wall thickness and pressure-handling capacity.
2. How can I choose between SS 304 and SS 316?
- Select SS 316 for intense corrosive environments (marine/oil). Use SS 304 for general-purpose applications.
3. How does pipe weight affect transportation?
- Lighter schedules like SCH 5 and SCH 10 reduce transportation costs for large-volume projects. Use our chart for an optimized balance between thickness and weight.
4. Why are burst pressure values important?
- Burst pressure indicates the maximum internal pressure that the pipe can handle before failure, ensuring safety in high-performance systems.
